Specification

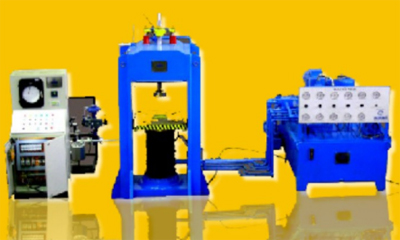

SEC SBV-300
Press Closing Force
300 tons
Mould Range from 12”- 20”
Cycle & Motor-cycle Bladders
Diameter of main RAM
350 mm
Hydraulic oil pressure
250 kg/cm
Stroke of main RAM
670(std)/1000 (sp.) mm
Core cylinder force at: Raising force Downward force
180 kg/cm 20 tanns 10 tanns
Ejectro cylinder force at: Push-up force Pull down force
180 kg/cm 10 tanns 9 tanns
Stroke of core cylinder
150 mm
Stroke of core ring
230 mm
Distance between side links
820 mm
Thickness of mould (max./min.) ht
250/100 mm
Platen Dimensions Bottom (w & l) Top (w & l)
750 mm 750 mm
Maximum press opening
670 mm
Electric Power (KW)
8 KW
Approx weight press and pump (Kgs)
7000
Approx closing speed H.P./L.P. (mm/min)
100/1000
